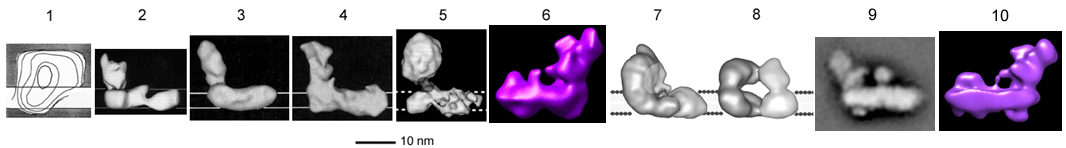

EM images and 3D models of complex I


1. N. crassa. (Leonard et al., 1987)
2. N. crassa. (Hofhaus et al., 1991)
3. N. crassa (Guénebaut et al., 1997)
4. E. coli NDH-1 (Guénebaut et al., 1998)
5. Bovine heart (Grigorieff, 1998)
6. Y. lipolytica (Radermacher et al., 2006)
7 and 8. E. coli (Böttcher et al., 2002); 7 is "inactive" form, 8 is "active" form
9. Arabidopsis (Dudkina et al., 2005)
10. Bovine (Clason et al., 2010)
